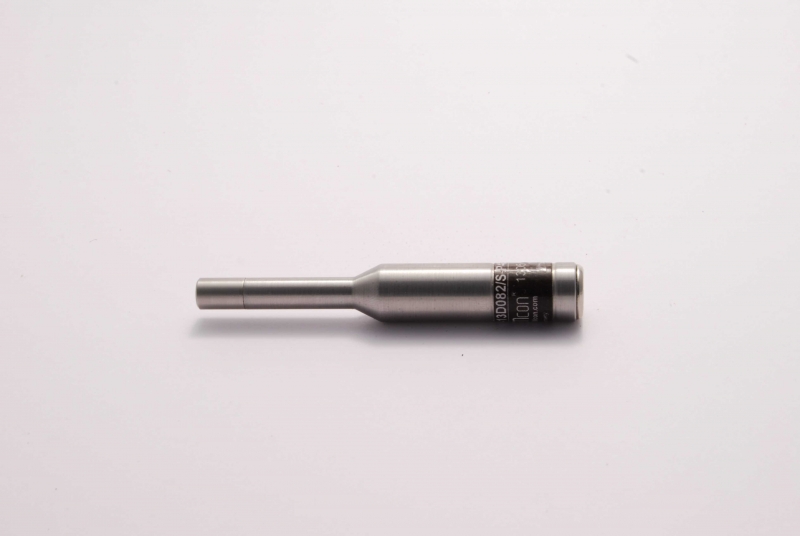

1/4" front - 1/2" body Measurement microphone, phantom powered
super compact design
- 3dB THD limit > 140dBspl
- Sensitivity 6mV/Pa @ 94dBspl
- Mini XLR connector
- NEW - on-axis and diffuse-field calibration included
- Phantom power 12 / 24 / 48 Volts
- Linear frequency response 10...20000 Hz (calibration chart and calibration file included)
- Dynamic Range: approx. 30...140 dBspl
- Dimensions: Front dia 7mm (~1/4"), 1/2" body dia, length 82mm
- Temperature: 10 to +55ºC (+14 to +131ºF)
- Stainless steel housing
- Polyurethane sealed

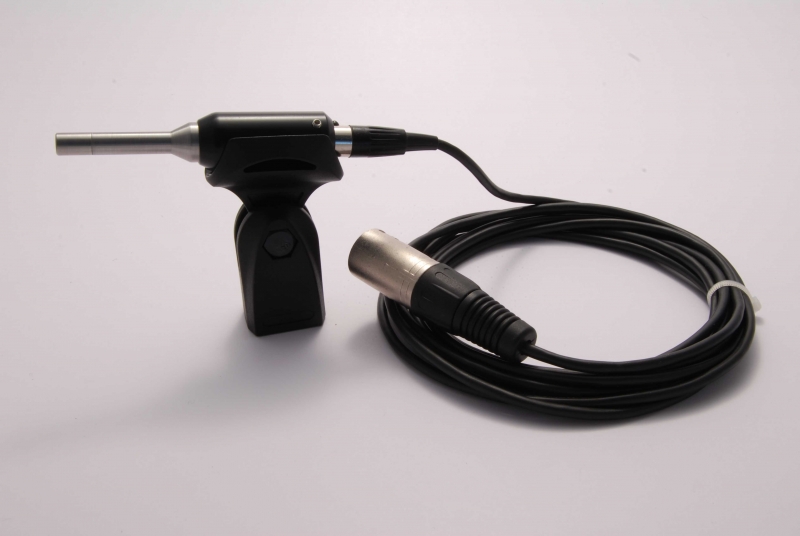

- Flexible holding clamp

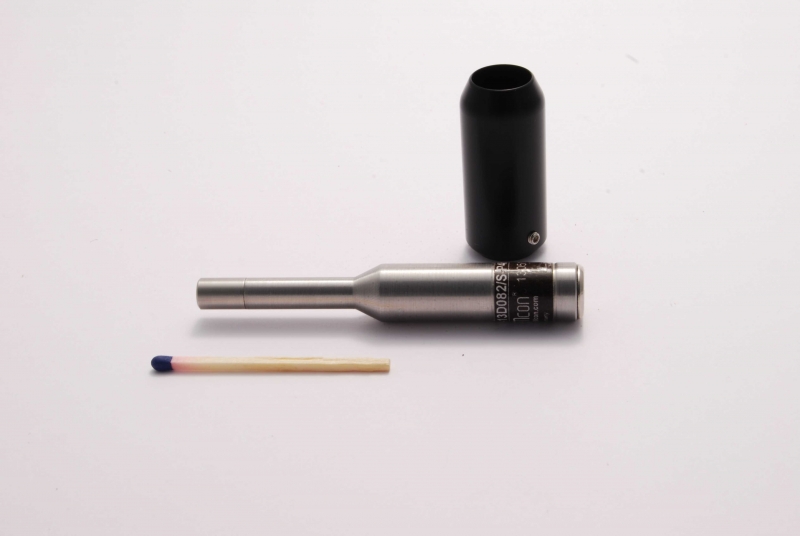

- Clamp adapter
- Sound calibrator
*1: Copyright & Trademarks Product names and other trademarks referred to within iSEMcon documents and within our websites are the property of their respective trademark holders. None of these trademark holders are affiliated with iSEMcon, our products, or our website.
|| sample calibration file (freefield)
| sample calibration sheet
