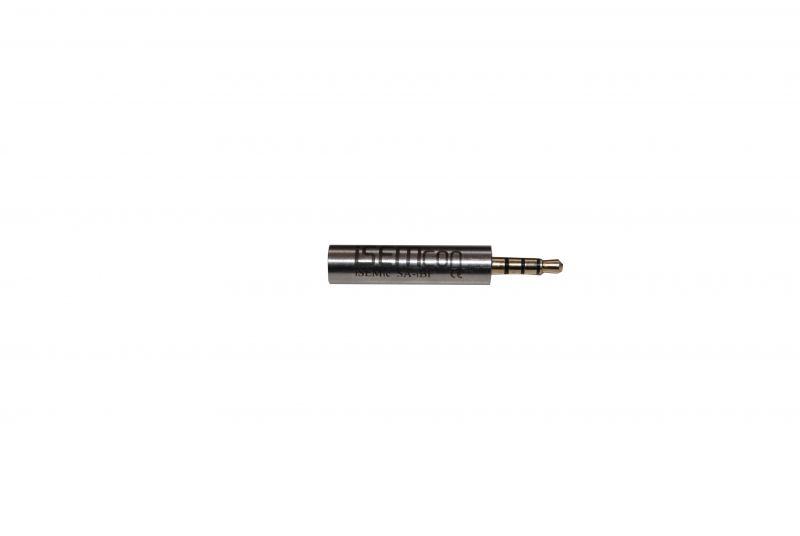

iSEMic microphone adapter for use with iPhone, iPad any many others following the CTIA / AHJ standard.
TRRS standards
Standard |
Tip |
Ring-1 |
Ring-2 |
Sleeve |
Devices using this Standard |
OMTP |
Left Audio |
Right Audio |
Microphone |
Ground |
old Nokia (and also Lumia starting from the 2nd gen old Samsung (2012 Chromebooks), old Sony Ericsson (2010 and 2011 Xperias), old Wiko (2012-), Sony (PlayStation Vita), OnePlus One |
CTIA / AHJ |
Left Audio |
Right Audio |
Ground |
Microphone |
Apple, HTC, latest Nokia, latest Samsung, latest Wiko (2013+), Jolla, Sony (Dualshock 4), Microsoft (including Surface, Lumia, and XboxOne controller with chat adapter)[17] most Android phones |
more info: Wikipedia http://en.wikipedia.org/wiki/Phone_connector_%28audio%29
