Measurement microphone EMM-7101-CSTB

Measurement microphone EMM-7101-CSTB

Not rated yet


271.00 USD

excl. Shipping costs

Manufacturer: iSEMcon
More from this manufacturer
Product no.: 130014
Shipping time: 3-4 Days

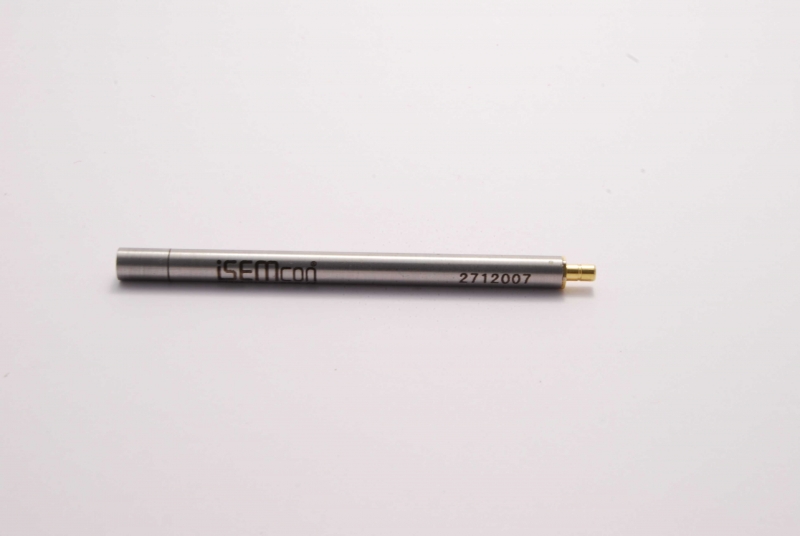

1/4" CCP Measurement microphone, Special array version, ultra lightweight

    • 3% THD limit > 125dBspl
    • Sensitivity 30mV/Pa @ 94dBspl
    • SMB connector
    • TEDS Transducer Electronic Data Sheet as per IEEE 1451.4 Template 27

Features:

    • Constant current power 2...20mA, maximum excitation voltage 30V
    • Phantom power compatible by the use of a passive connector adapter, no signal converter necessary
    • Selfbiasing
    • Linear frequency response 10...20000 Hz (calibration chart and calibration file included)
    • Omnidirectional
    • prepolarized
    • Dynamic Range: approx. 30...125 dBspl
    • Built-in preamplifier (ICP, IEPE, Deltatron, AcoTron, Isotron, Piezotron compatible *1)
    • SMB connector
    • Dimensions: Nominal diameter 7mm (~1/4"), length 101mm
    • Temperature: 10 to +55?C (+14 to +131ºF)
    • Stainless steel housing
    • Polyurethane sealed

Optional Accessories>

    • Cables
    • Flexible holding clamp
    • Clamp adapter
    • Windshield
    • Sound calibrator

*1: Copyright & Trademarks Product names and other trademarks referred to within iSEMcon GmbH. documents and within our websites are the property of their respective trademark holders. None of these trademark holders are affiliated with iSEMcon GmbH, our products, or our website.



Datasheet sample-cal
sample calibration sheet  cable calculator
